Duraklick GR

Flat roof mounting system for green roofs

Duraklick GR is the mounting system for photovoltaic systems on green flat roofs. Designed for roofs with extensive or intensive planting, the system has higher module supports than our basic system.

Green roofs usually have a lower ambient temperature than foil roofs. This can lead to higher efficiency of the photovoltaic modules and has a positive effect on the economic efficiency of the system.

The outstanding Duraklick system properties such as easy installation, our click system and the self-supporting lightweight aluminum construction also characterize this system.

PRODUKT HIGHLIGHTS

Überzeugende Eigenschaften

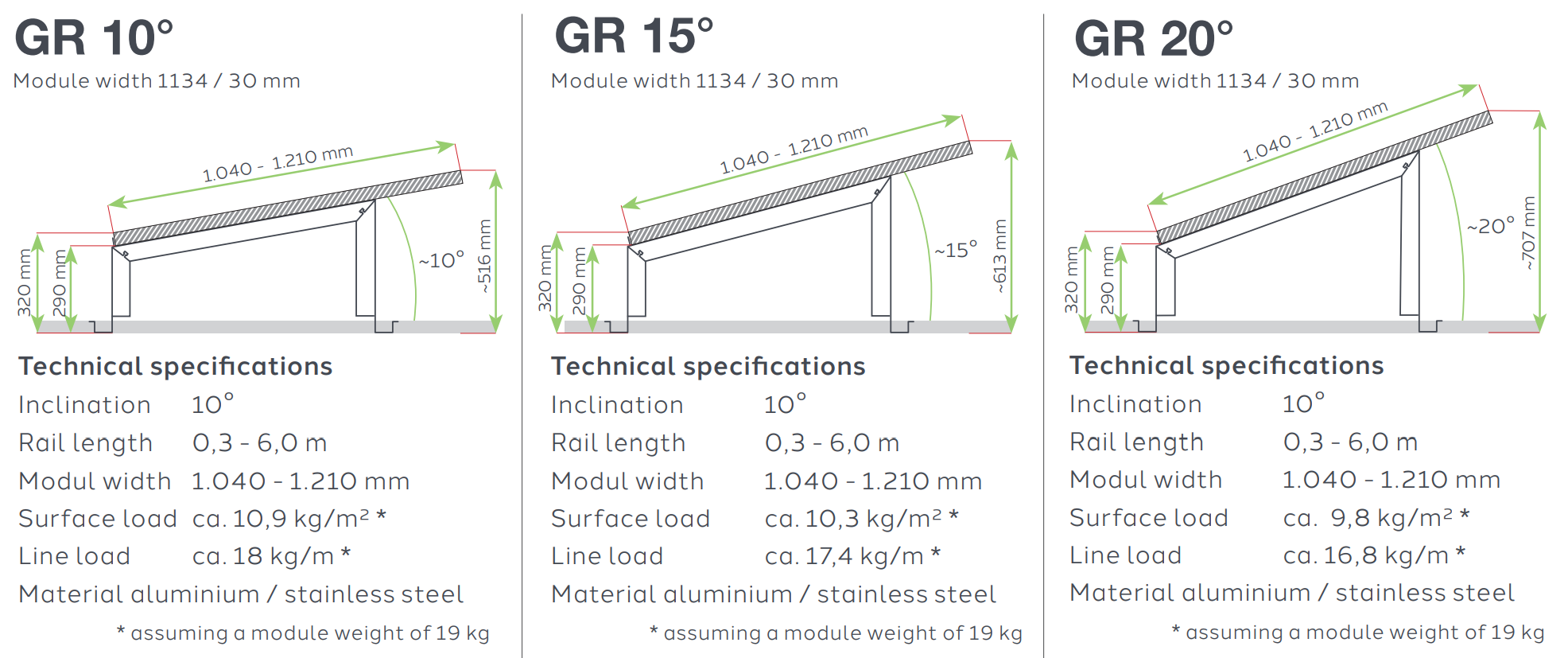

Available in 3 different installation angles 10°, 15°, 20°

Cost effective quick and easy to install

Suitable for subsidized green roofs

Can also be installed in east-west constellation

Module height ~30cm above roof cladding

Best load distribution due to 230 mm wide base profile

Approved by the German Institute vor Building Technologies DIBT

Corrosion resistant due to high quality material

Compatible with the certified, penetration-free
height safety system Duraklick-HSS

Made in Germany

DURAKLICK GR
