PV substructure for flat roofs

Duraklick mounting systems are lightweight, aerodynamic and self-supporting – specially developed for large-scale photovoltaic systems on flat roofs. They are characterised by their lightweight, aerodynamic and self-supporting design – without penetrating the roof.

Manufactured from high-quality aluminium in lightweight construction, the systems are ideal for industrial and commercial buildings as well as for flat roofs of detached houses and apartment blocks.

Duraklick impresses with its quick, easy and secure installation.

The extra-wide base rails with a width of 230 mm ensure even load distribution on the roof. In the case of static requirements, they can also be ballasted in order to be optimally adapted to the respective local conditions.



DOCUMENTS

Further information on the flat roof mounting systems can be found in our sales sheets:

MOUNTING SYSTEMS

Duraklick ECO

Economical flat roof PV mounting system for south-facing roofs

learn more

Duraklick EW

Flat roof PV mounting system for east-west orientation

learn more

Duraklick GE

Elevated flat roof PV mounting system for gravel and green roofs. For south and east-west orientation

learn more

Duraklick GR

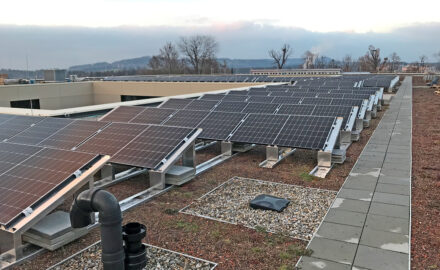

Flat roof PV mounting system for green roofs in south and east-west orientations

learn more

Duraklick SR

Aerodynamically optimized flat roof PV mounting system for south orientation

learn more

Duraklick ECO 0°

Roof-parallel PV mounting system

learn more

Duraklick GR 10°L / GR10°L 400mm

Flat roof mounting system for green roofs Duraklick

learn more

Duraklick XL

Flat roof PV mounting system for extreme snow and wind loads

learn more

Tools for installers, planners and architects

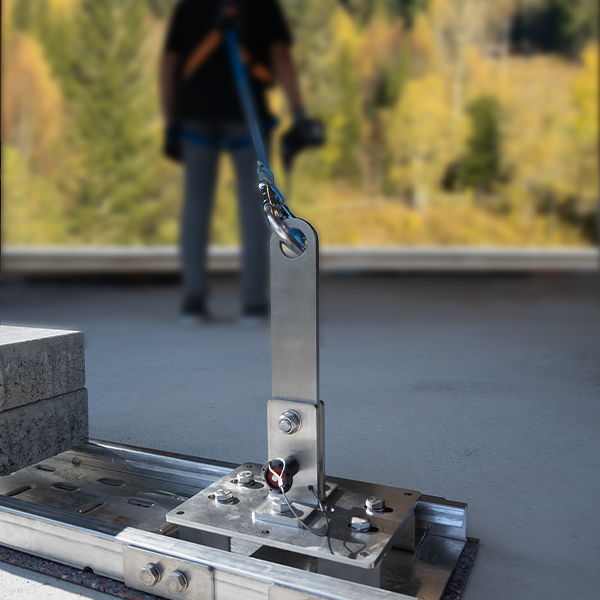

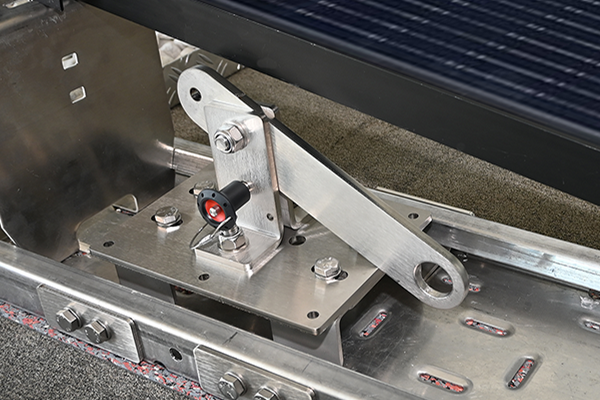

Duraklick Single Anchor Point (SAP), foldable.

The SAP stands out for its ease of use, as it is anchored directly into the base rail, eliminating the need for a separate HSS rail. In addition, it meets all requirements for anchor devices Type A and E and is certified by DEKRA in accordance with DIN EN 795:2012 Type A&E and DIN CEN/TS 16415:2017, ensuring the highest safety standards.

Your advantages at a glance:

  • No shading: The foldable mechanism ensures that the efficiency of your PV system is not affected.
  • Ideal for small or complex flat-roof PV systems: Perfect for compact installations.
  • Flexible installation: The EAP can be mounted at the edge or within a PV array, providing maximum flexibility.
  • Approved for up to two users simultaneously: Safety and compliance with standards are our top priorities.
  • No roof penetration: Minimizes the risk of damage to the building structure.
  • Ballasted system: The Duraklick single anchor point is stable and secure.
  • Integrated into the PV system: A harmonious and efficient solution for your projects.
  • Easy maintenance: All relevant components can be inspected without disassembly.

Take advantage of this innovative solution and benefit from the features offered by our foldable single anchor point (SAP).

DOCUMENTS

HSS fall protection system

The efficient, flexible and economically clever fall protection system

With the Duraklick HSS fall protection system, we offer an efficient, flexible and economically clever fall arrester for flat roofs. It is integrated into the PV mounting system and saves you having to install anchorage points or other roof security systems. Up to four people can be secured and enjoy great freedom of movement. The system is approved in Europe and Switzerland and can also be easily retrofitted into existing Duraklick systems.

Système antichute HSS sur un toit plat photovoltaïque

Offer preparation

In order to be able to provide you with a precise and binding quotation for an assembly system, we require the following documents:

  • Our checklist, filled out with all available data
  • A layout plan with roof dimensions (preferably as a PDF or DWG)
  • A data sheet of the planned module
  • Photos of the property and the surrounding area, if available

On submission of this information, we will provide you with a binding quotation with installation plans and a project overview within 2-3 working days. You will also receive our non-binding preliminary calculations of the loads. This service is of course free of charge for you. If you place an order, you will then receive a binding system statics for your project from us.

Kontakt

SOLTOP Energie GmbH

SOLTOP Energie AG

Duraklick ECO 20° – Flachdachanlage in Stuttgart

Duraklick ECO 0° – Flachdachanlage

Duraklick ECO – Flachdachanlage

Duraklick GE – Flachdachanlage

Duraklick GE System

Photovoltaik-Flachdachanlage mit Duraklick

How the sun’s position affects PV modules

The sun is high in summer and low in winter. The more directly its rays hit the module, the more power it produces. A slight tilt towards the south improves the angle of incidence, especially in the colder months. At the same time, the low winter sun casts long shadows, so it determines the row spacing required.

Sun position and angle of incidence on a PV module on a flat roof Midday sun in Zurich: 66 degrees on 21 June, 43 degrees in March and September, 19 degrees on 21 December. The module is tilted 10 degrees to the south. In winter, the shadow is about 2.9 times as long as the height of the module edge. Module normal Tilt 10° 21 June Sun elevation 66° March / Sept. 43° 21 Dec. 19° h Winter shadow ≈ 2.9 × h North South

Summer (21 June)

Sun elevation 66°, angle of incidence on the module 14°.

Module tilted 10°: 97%
Module flat (0°): 91%

Spring / autumn

Sun elevation 43°, angle of incidence on the module 37°.

Module tilted 10°: 80%
Module flat (0°): 68%

Winter (21 December)

Sun elevation 19°, angle of incidence on the module 61°. Long shadows: plan the row spacing.

Module tilted 10°: 48%
Module flat (0°): 33%
Percentages: share of direct midday radiation reaching each square metre of module surface (100% = sun perpendicular to the module). Calculated for Zurich (47.4° N) and a south-facing orientation; diffuse radiation is not included. The exact row spacing depends on tilt, module height and location.

FLAT ROOF

Do you need support? Contact a counsellor now!

Find a consultant

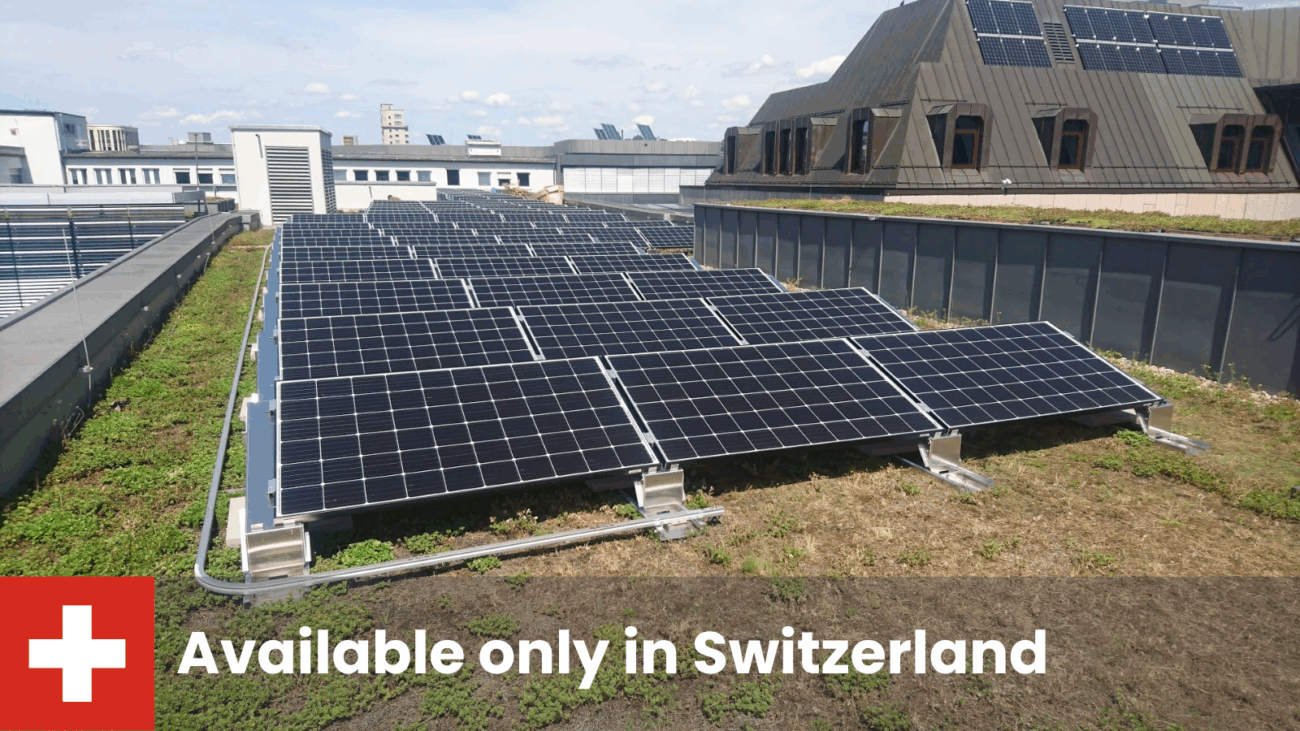

Duraklick GR 10° auf einem Gründach
