Duraklick ECO 0°

Roofparallel Mountingsystem

The ECO 0° mounting system consists of the same, high-quality components as our proven flat roof systems and is also based on the 230 mm wide floor profile with building protection mat – up to roof pitches of 5° can be stabilized purely by ballast.
For gable roofs over 5°, the floor profile is simply guided over the roof ridge.
ridge. At least one fastening point is required for monopitch roofs.

DOCUMENTS

Always the right solution for your flat roof.

PRODUCT HIGHLIGHTS

Convincing features

Cost-effective, quick and easy to install

Best load distribution due to 230 mm wide bottom profile

Maximum space utilisation

Corrosion resistant and statically tested

Approved by the German Institute vor Building Technologies DIBT No. Z 14.4-691

Compatible with the certified, penetration-free height safety system Duraklick-HSS

Made in Germany

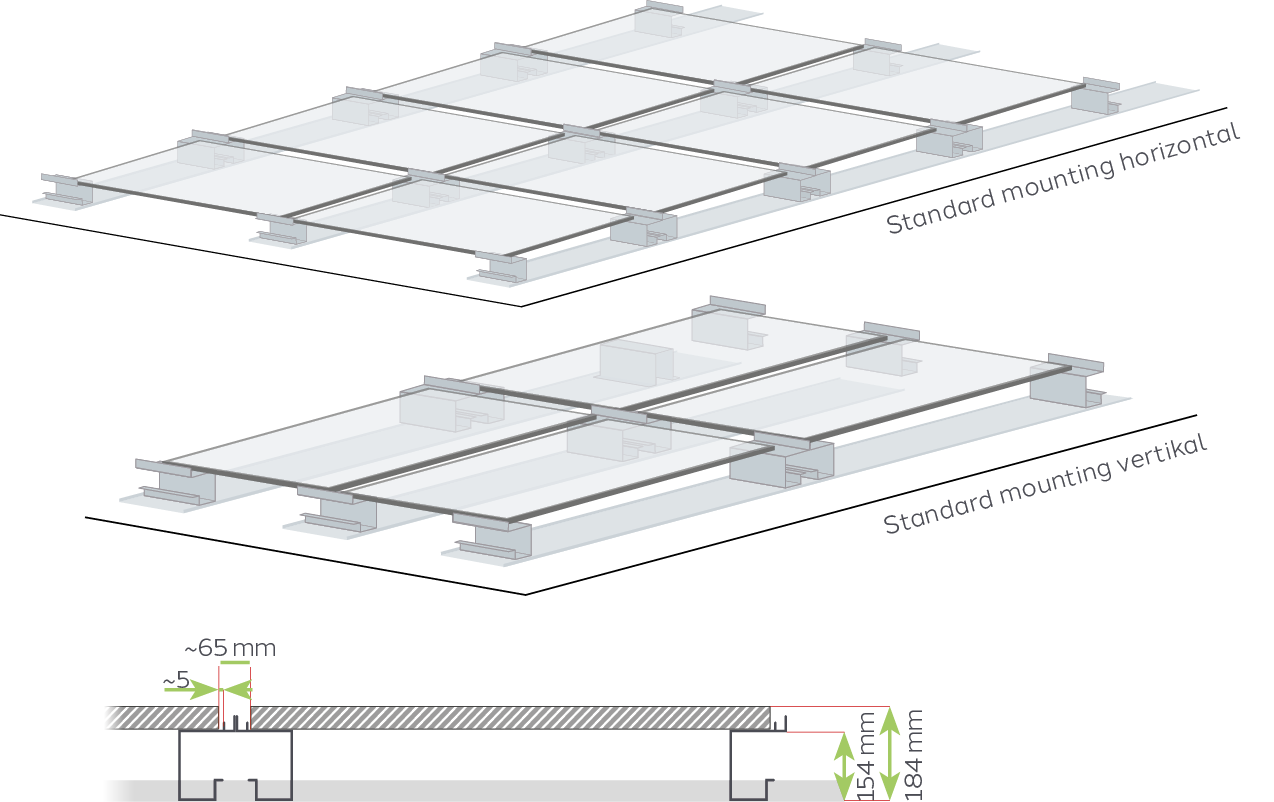

ECO 0° „Standard“

This installation variant enables cost-efficient and flexible installation, both vertically and horizontally. The floor profiles can still always be installed in the direction of the roof slope. In the horizontal orientation, the PV modules are clamped on the short module side in the corner area. In the vertical alignment, they are also clamped in the corner area, but on the long module side. Our module clamps with a length of 70 mm, in conjunction with the large contact surface of our module supports, ensure secure installation of all framed PV modules, even with corner clamping.

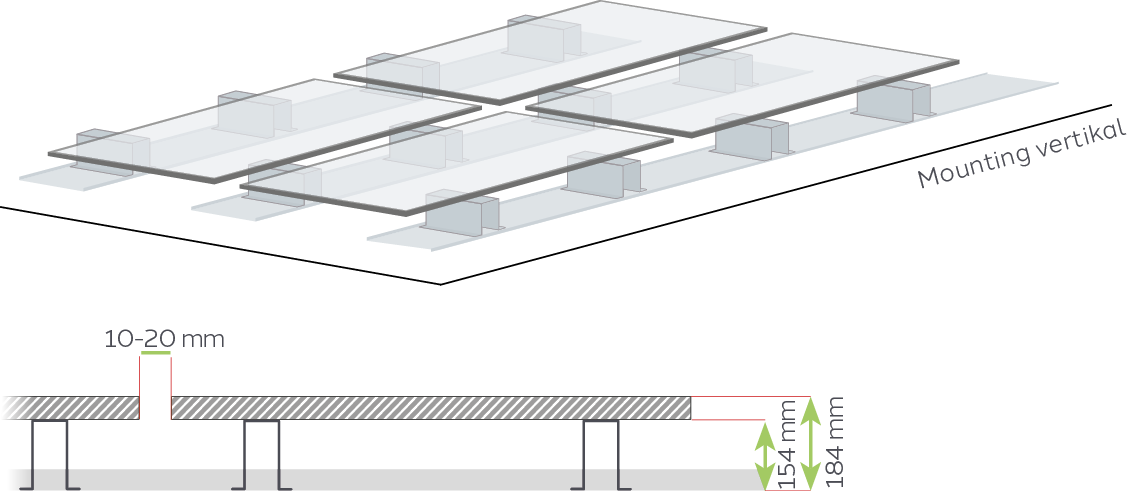

ECO 0° „Optimum clamping“

Enables secure installation at the specified clamping areas of the modules, even with high snow and wind loads. Requires vertical installation at a maximum roof pitch of 10°.

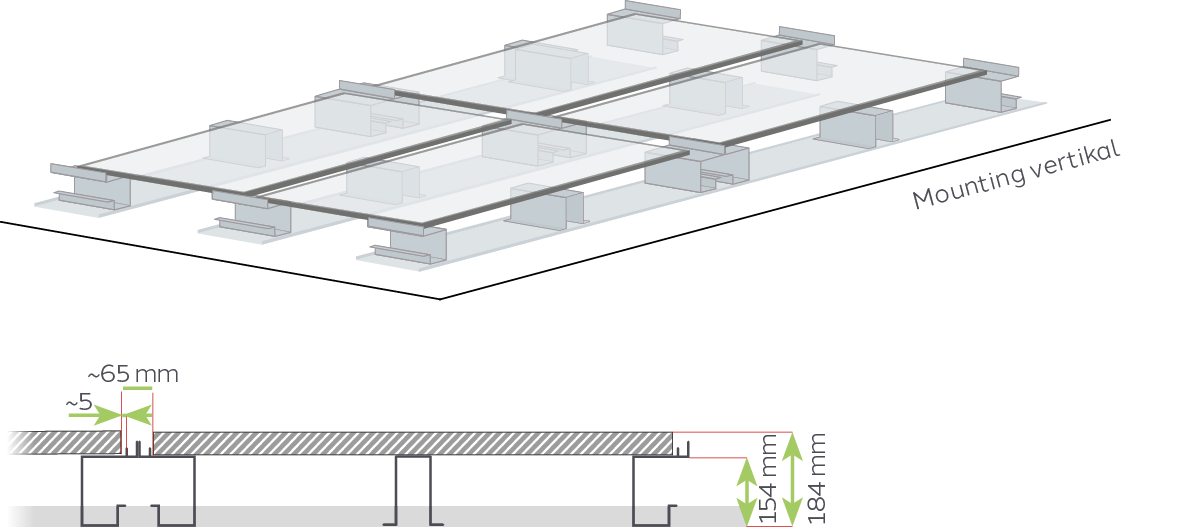

ECO 0° „6-point support/clamping“

Thanks to the combination of the two ECO 0° supports and the six possible support and clamping points, this system is also suitable for locations with extremely high snow and wind loads, even on steeply pitched roofs.
